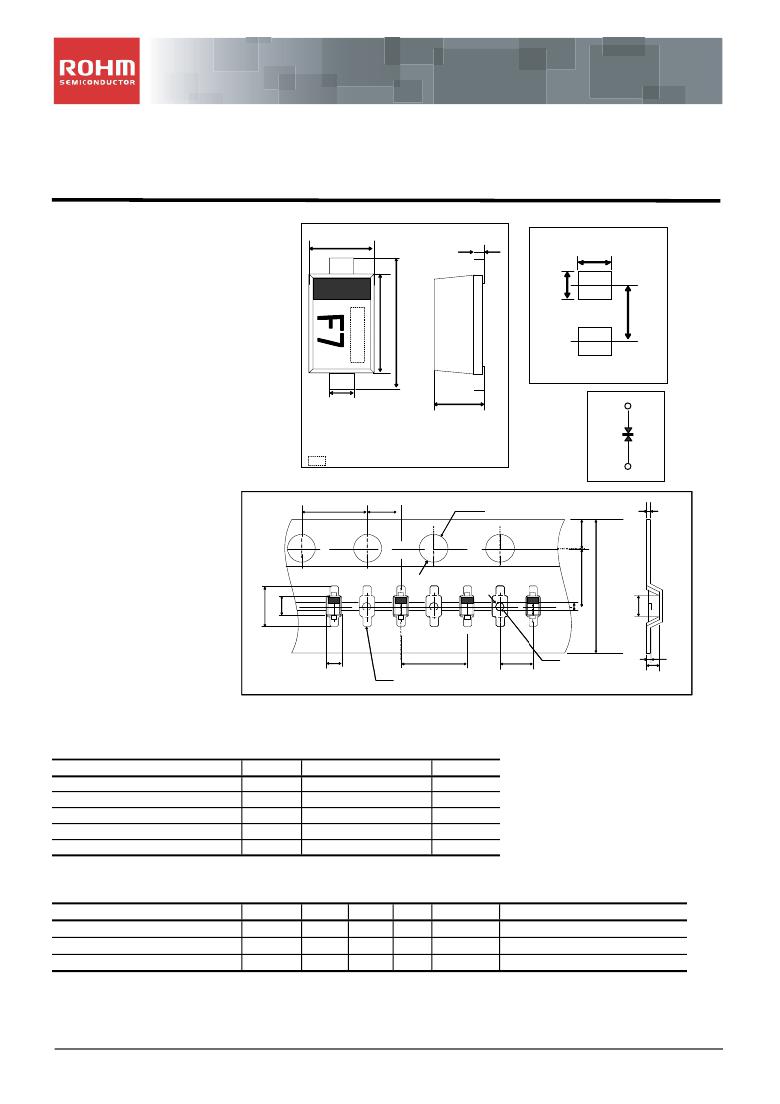

Data Sheet
ESD Protection diode
RSB6.8S
? Applications
ESD Protection
? Dimensions (Unit : mm)
0.8±0.05
0.12±0.05
? Land size figure (Unit : mm)
0.8
? Features
1) Ultra small mold type. (EMD2)
2) Bi direction high reliability.
3) Bi chip-mounter, automatic mounting
is possible.
EMD2
? Construction
Silicon epitaxial planar
0.3±0.05
0.6±0.1
? Structure
ROHM : EMD2
JEDEC :SOD-523
JEITA : SC-79
dot (year week factory)
? Taping specifications (Unit : mm)
0.2±0.05
4.0±0.1
2.0±0.05
φ1.5±0.05
φ 1.55 ± 0.05
φ0.5
0.2
0.90 ± 0.05
0.75 ± 0.05
0.95±0.06
0
Empty
空ポケット pocket
4.0±0.1
2.0±0.05
0.76±0.05
? Absolute maximum ratings (Ta=25°C)
Parameter
Peak Pulse Power (tp=10×1000 ? s)
Power dissipation
Junction temperature
Storage temperature
Operating temperature range
Symbol
Ppk
P
Tj
Tstg
Topor
Limits
10
150
150
-55 to +150
-55 to +150
Unit
W
mW
°C
°C
°C
? Electrical characteristics (Ta=25°C)
Parameter
Zener voltage
Reverse current
Capacitance between terminals
Symbol
V z
I R
Ct
Min.
5.78
-
-
Typ.
-
-
-
Max.
7.82
0.5
30
Unit
V
μ A
pF
Conditions
I Z =1mA
V R =3.5V
V R =0V , f=1MHz
www.rohm.com
? 2011 ROHM Co., Ltd. All rights reserved.
1/2
2011.03 - Rev.C
